Home > KTM DUKE 790 HI-SLUNG SLIP-ON & DE-CAT COMPLIANT & RACE EXHAUST SYSTEMS
KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS  Zoom
KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS
KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS KTM DUKE 790 HI-SLUNG SLIP ON & DE-CAT EXHAUST SYSTEMS
Previous Next

KTM DUKE 790 HI-SLUNG SLIP-ON & DE-CAT COMPLIANT & RACE EXHAUST SYSTEMS

£ 699.00

New product

Select the V3 250MM OR V3 MINI 250MM compliant SLIP-ON silencer for BSAU/EU etched number.

All other options will be race use only.

FITTING COMPLEXITY

fitting complexity 3.jpg

4-7 Week Lead Time

A•T•O•M TUNING DEVICE IS REQUIRED WITH THIS EXHAUST CLICK HERE (DE-CAT ONLY)
HEADERS NOW AVAILABLE CLICK HERE

More details

KTM DUKE 790 HI-SLUNG SLIP-ON & DE-CAT  COMPLIANT & RACE EXHAUST SYSTEMS

To add headers to complete the full system CLICK HERE

  • Full titanium construction
  • Advanced flow dynamics
  • Full use of passenger pegs
  • Stock fuelling on the 790 is designed to get around EU emissions control rather than performance, It is essential to use our A.T.O.M module on our de-cat systems. If no A.T.O.M is used with our de-cat systems your exhaust warranty will be invalid.
  • Our A.T.O.M unit provides an ignition & fuel mapping, the unit is one of the most advanced systems on the market. It uses superior connectors and has massive capabilities for ecu action control. The time and effort creating these maps for each bike model is extremely intensive. We keep the mapping within safe working parameters using oil analysis information preserving engine life whilst achieving optimum performance.

A.T.O.M

  • The A.T.O.M unit must be used on any version of the bike running our RS22/de-cat systems, this includes the restricted L
  • Slip-on A•T•O•M is not essential to use the system safely, but when used this will increases mid range & peak power
  • versions available, Performance gains on the L version will be noticeable up until 7,000 RPM at which point the restriction will prevent power gains above this RPM, however is essential for safe running of the bike.
  • For our A•T•O•M tuning device (CLICK HERE)

SPECS

  • 790 GP1 slip-on + de-cat pipe - 1.3kg
  • 790 standard system - 6.7kg
  • Total weight saving - 5.4kg
  • Stock header weight - 2.9kg
  • Austin Racing header weight - 1.1kg
  • header weight saving - 1.8kg

Combined with our headers this creates a total system weight saving of 7.2 kg !

SLIP-ON DB LEVELS - TESTED AT 4500RPM

SLIP-ON

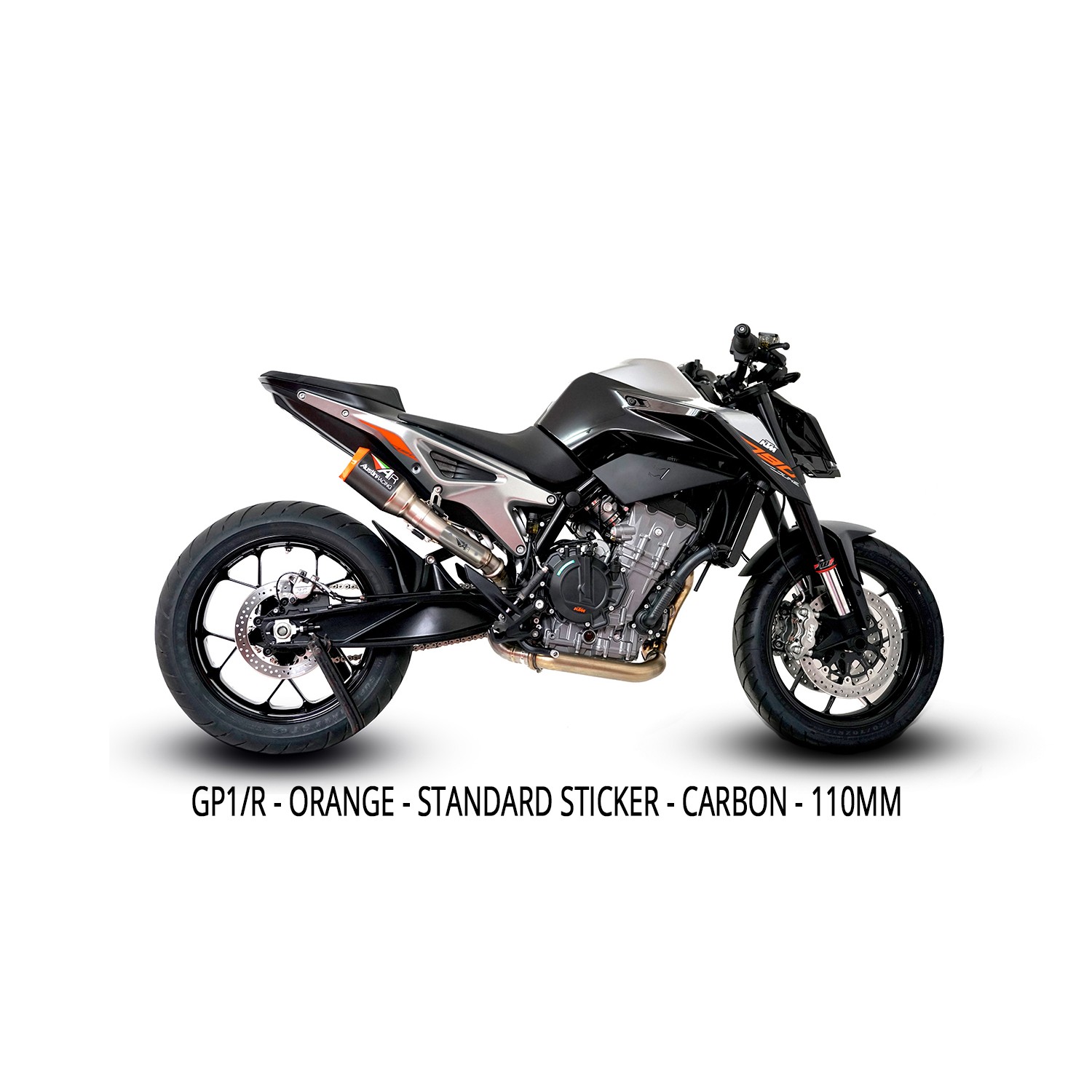

  • Short 110mm can - 98 db
  • V3 mini - 98 db
  • V3 mini 200mm - 96 db
  • V3 mini 250mm - 94/95db (COMPLIANT)

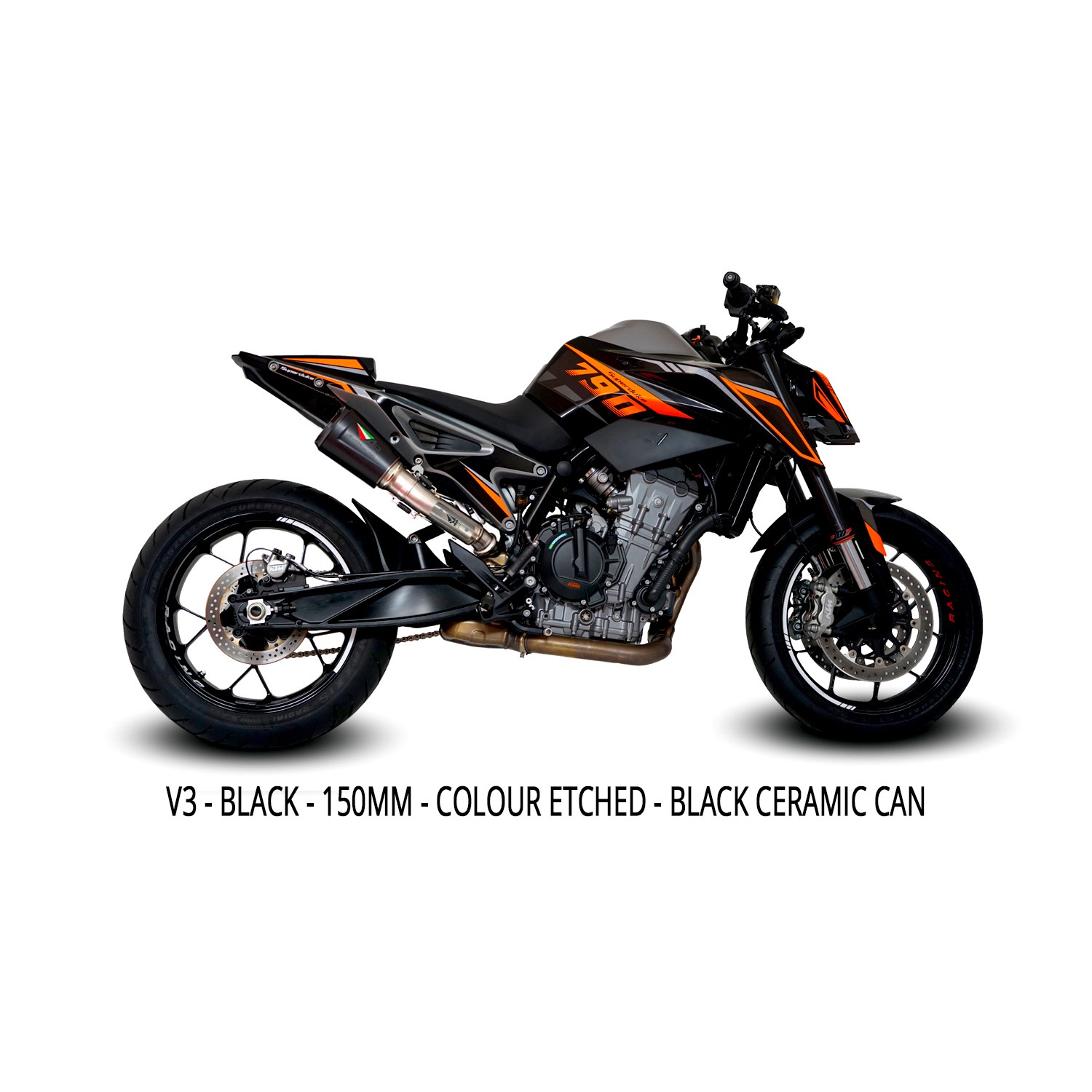

  • V3 150mm - 96 db
  • V3 200mm - 95 db
  • V3 250mm - 94 db (COMPLIANT)

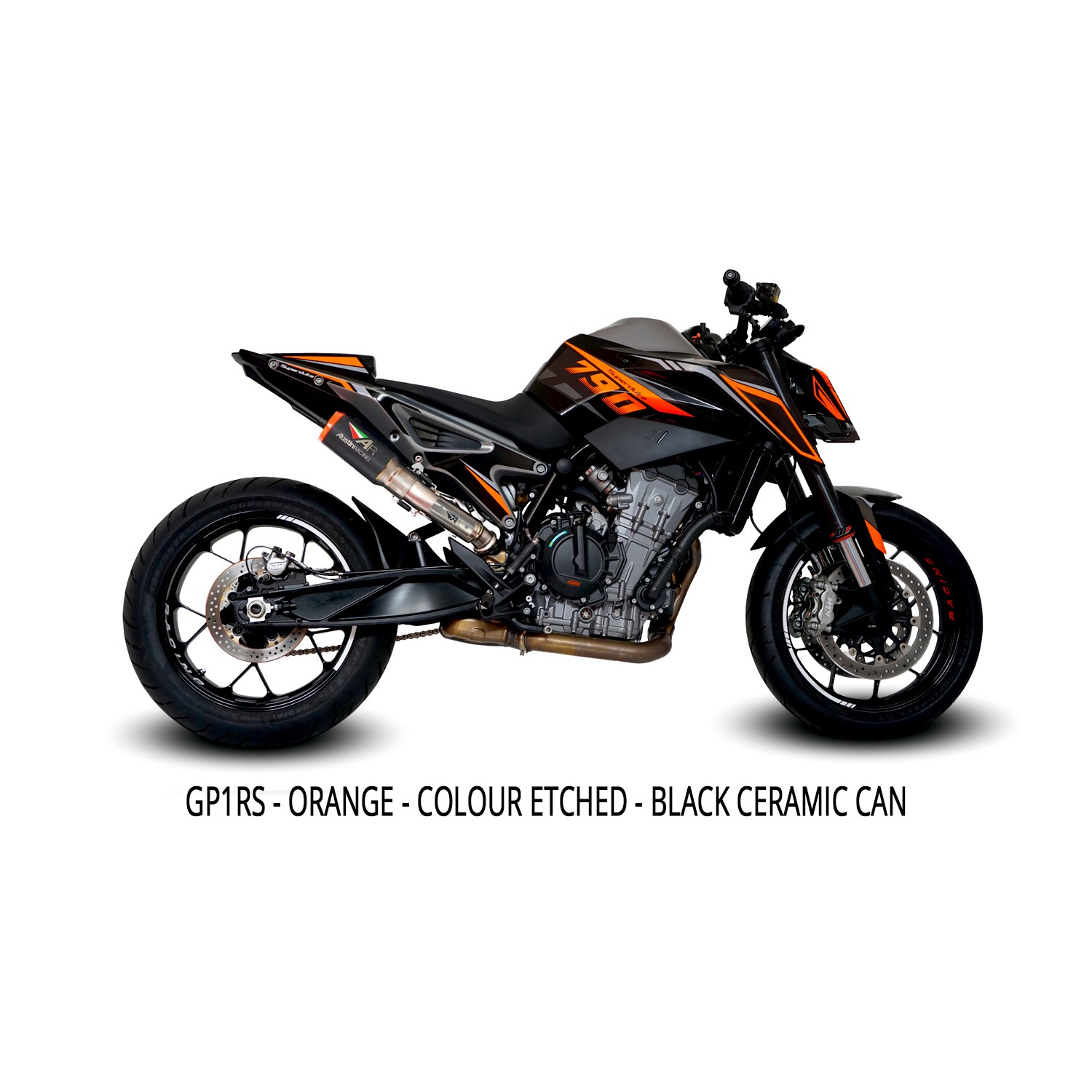

  • GP1RS - 98db

DE-CAT

  • Short 110mm can - 106 db
  • V3 mini - 106 db
  • V3 mini (200mm) - 103 db
  • V3 150mm - 102 db
  • V3 200mm - 101 db
  • V3 250mm - 100 db
  • GP1RS - 106 db
